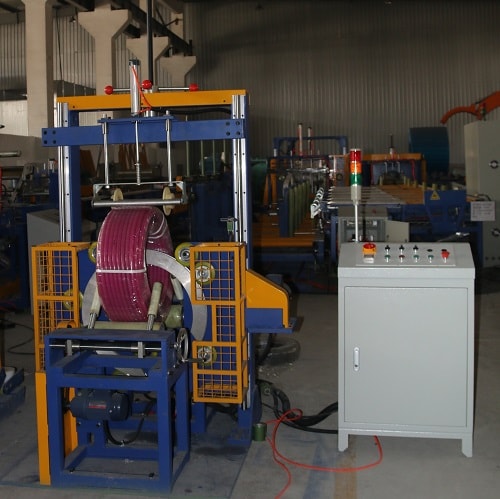

Hose film wrapper FPS-300H

Project Information

The FPS-300H is designed for efficient packaging of lightweight and small hose coils, PVC pipe coils, and other piping materials. Its advanced features ensure product protection during storage, transportation, and sales.

Key Features:

Tension & Press: Secure, neat wraps

Easy Loading: 850 mm height for quick handling

High Throughput: 60–90 coils/hr, consistent ring-mounted wraps

Multi-Purpose: Pipes, hoses, tires, cables, belts

Streamline light hose & PVC pipe coil packing with Wuxi BuHui’s FPS-300H. Ergonomic 850 mm loading height and motorized ring wrap 2 kg coils at 60–90 coils/hr. Tension control and top press-down ensure stable, uniform film or tape application. Automate end-of-line packaging to cut labor, minimize waste, and protect coil integrity.

The Challenge: Light Coil Packaging Pain Points

High Manual Effort: Hand wrapping is slow, tiring, and inconsistent.
Unstable Wraps: Coils shift or deform without proper tension and stability.
Throughput Bottlenecks: Slow equipment can’t meet 60–90 coils/hr demands.
Ergonomic Strain: Poor loading height and handling increase fatigue.
Coil Protection: Coils must stay neat, organized, and dust-free.
Material Waste: Excess film or tape drives up costs.
Adaptability: Lines need quick setup for varying coil sizes and media.

The Solution: FPS-300H Features & Benefits

Feature	Benefit & ROI
Tension Controller & Press-Down	Secures coils to prevent shifting and deformation for uniform wraps.
Ergonomic Loading (850 mm)	Reduces operator fatigue and speeds manual loading/unloading.
High-Speed Ring Rotation	Delivers 60–90 coils/hr with consistent inside-out wrapping.
Multi-Material Compatibility	Supports film or tape to balance protection and cost.
Stable Wrapping Mechanism	Prevents shaking and folding, cutting rejects and rework.
Light Coil Handling	Wraps coils from 2 kg up without deformation.
Quick Setup & Changeover	Minimal downtime when adjusting for different coil sizes.
Custom Configurations	Tailors dimensions and controls to your facility and coils.

Technical Specifications

Parameter	Specification
Model	FPS-300H
Coil Weight Min.	2 kg
Throughput	60–90 coils/hr
Loading Height	850 mm
Ring Speed	Up to 120 RPM
Power	380 V, 60 Hz, 3-phase; ~1.5 kW
Materials	Stretch film or tape (optional paper/HDPE)
Controls	Tension & press-down; simple interface
Safety	Guarding; smooth braking; stable operation
Customization	Per client specs

Ideal Applications & Industries

Garden Hose Producers: Automated wrapping for retail and bulk shipments.
PVC/PE Pipe Manufacturers: Efficient packaging of lightweight coils.
Tube OEMs: Protect delicate tubing before assembly or shipment.
3PL Packaging Providers: High-throughput service for varied small coils.
Logistics & Warehousing: Neat, protected coils reduce damage claims.
After-Sales Services: Fast repackaging of replacement coils.
Equipment Integrators: Integrate turnkey wrapping into end-of-line systems.

Why Wuxi BuHui

Wuxi BuHui’s FPS-300H combines high-speed wrapping, precise tension control, and ergonomic design to slash labor and waste. Stable press-down and motorized ring rotation ensure uniform protection at 60–90 coils/hr. Multi-material support and custom layouts adapt to any facility. Choose Wuxi BuHui for reliable, efficient light coil packaging that boosts productivity and safeguards product quality.

Request a Quote

Share your coil specs and throughput goals with Wuxi BuHui. We’ll configure the FPS-300H for peak performance, protection, and cost savings.

A hose film wrapper is an efficient packaging solution designed to wrap hoses tightly with protective film, safeguarding them from damage, moisture, and dirt. This machine enhances storage and transportation durability, minimizing wear and extending hose lifespan, making it essential for industries prioritizing hose quality and longevity.
