Cold Roll Steel Coil Strapping & Packing Line Manufacturer

Cold Roll Steel Coil Packing Line Manufacturer

Cold Roll Steel Coil Strapping & Packing Line

Project Information

Wuxi BuHui’s cold-roll steel coil packaging line delivers fully automated, energy-optimized performance—seamlessly syncing with your production line and ASRS to cut manual steps, accelerate throughput, and maximize uptime.

Key Features:

Fully automatic: Zero manual handling, continuous coil flow.
Energy-efficient: Optimized drives and controls slash power use.
Seamless integration: Real-time sync with the cold-roll line.
ASRS connectivity: Direct storage interface for rapid staging.

Get Free Quote Now

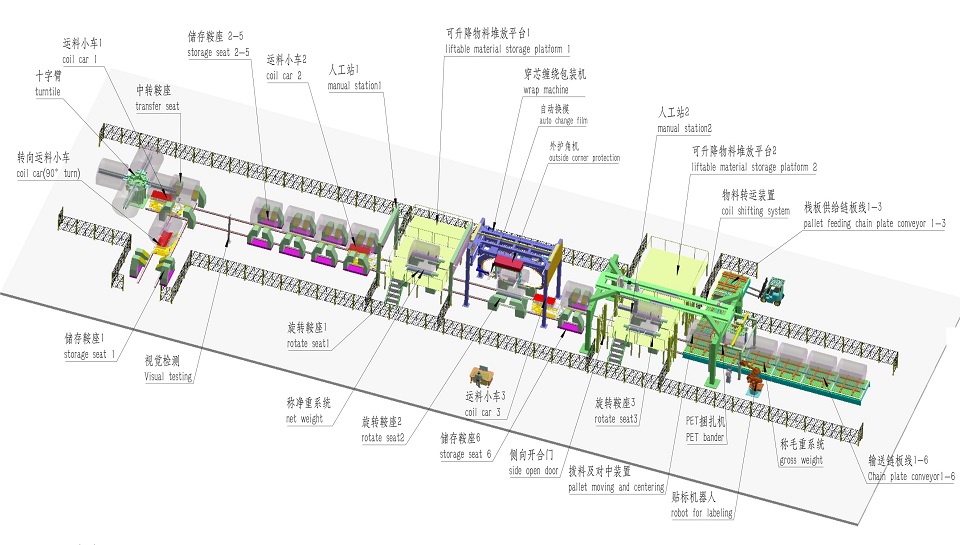

Aluminum coil packing line

Wuxi BuHui’s Automatic Cold Roll Steel Coil Packaging System automates strapping, edge protection, multi-layer wrapping, and transfer to ASRS or pallet stations—ensuring damage-free coils, faster cycles, and lower operating costs.

The Challenge: Manual, Fragmented Packaging

Labor-intensive: Manual strapping and handling slow lines and raise costs.
Inconsistent protection: Variable tension and single-layer wraps risk surface damage and corrosion.
Integration breaks: Disconnected packaging, weighing, labeling, and storage create bottlenecks.
High energy & maintenance: Outdated equipment lacks optimization and centralized monitoring.

Solution: Key Features & Benefits

Feature / Component	Benefit / ROI
Circumferential & Radial Strapping	Uniform steel-belt straps stabilize coils with minimal manual alignment.
ID/OD Edge Protectors	Automatic insertion of steel/cardboard guards prevents edge damage.
Multi-Layer VCI Film & Paper Wrapping	Orbital stretch wraps plus VCI paper shield against moisture and corrosion.
PLC Control & HMI	Recipe storage and synchronized control simplify changeovers and diagnostics.
Scanner & Weigh Scale Integration	Automatic dimension and weight data feed ERP/MES for traceability and billing.
ASRS & Line Interface	Seamless transfer between packaging and storage systems—no manual gaps.
Energy-Optimized Drives	High-efficiency motors and pneumatics reduce power and air consumption.
Modular Design	Optional label, side-cover, and pallet modules adapt to your layout.
Engineer-Led Service	On-site commissioning, training, and maintenance support ensure fast ROI.

Technical Specifications

Parameter	Specification
Coil Weight	200–6,000 kg
Dimensions	Width 40–500 mm; OD 650–1,500 mm; ID 508/610 mm
Strapping Speed	~20 s per belt
Wrapping Speed	Orbital pre-stretch 50%; 3 layers via dual-shuttle
Edge Protectors	Steel & cardboard
Scanner & Scale	Laser scanner; ±0.5% load cell
Control	PLC/HMI; recipe library, alarms, data logging
Power	400 V AC, 50 Hz; ~15 kW
Air	0.6 MPa; ~500 NL/cycle
Throughput	10–30 coils/hour (configurable)
Options	Label applicator, side-cover, pallet handling, ASRS interface
Safety	Guarding, interlocks, light curtains, E-stops
Layout	Modular cells, customizable footprint

Ideal Applications & Industries

Cold-Roll Steel Mills: Inline coil protection and ASRS storage.
Service Centers: Automated packaging, traceable labeling.
Auto & Appliance Suppliers: Precision coil protection.
Contract Packers & Logistics: Turnkey, scalable solutions.
Heavy Industry: Safe handling of large, heavy coils.
Export Hubs: Palletized, corrosion-resistant packaging.

Why Wuxi BuHui?

End-to-End Automation: Integrated strapping, wrapping, protection, and ASRS transfer under one PLC.
Precision & Traceability: Automated edge protection, scanning, weighing, and labeling ensure quality and transparency.
Energy Savings: Efficient drives and pneumatics lower OPEX.
Modular & Scalable: Add or reconfigure modules as needs evolve.
Expert Support: Engineering, commissioning, and training for fast, reliable deployment.

Request a Quote

Ready to secure and streamline your cold-roll coil packaging? Contact Wuxi BuHui with your specifications for a tailored solution and competitive quote.

A Cold Roll Steel Coil Strapping & Packing Line Manufacturer specializes in efficient, durable strapping and packaging solutions for steel coils. Leveraging advanced technology and robust materials, their equipment ensures coil safety during transport and storage, minimizes damage risks, and boosts operational efficiency for steel manufacturers.
