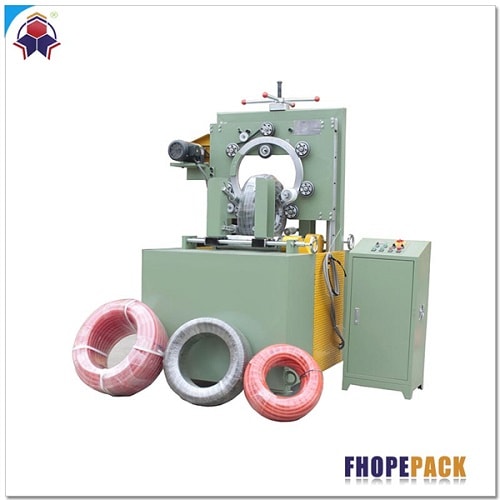

Hose Coil packing machinery FPH-200

Project Information

The FPH Series, designed by Fhope, offers advanced winding and packaging capabilities for industries like rubber hoses and metallurgy. It efficiently handles circular packaging needs for products such as plastic pipes, rubber hoses, tires, cables, and metal strips while prioritizing safety, ease of operation, and product integrity.

Key Features:

Versatile: Any material or item
User-Friendly: Manual/Auto, easy load/unload
Efficient: Fast cycles, adjustable speed & overlap
Safe: Guards, soft start/stop, auto fault alerts

Get Free Quote Now

Cut manual labor and protect small hose & pipe coils with Wuxi BuHui’s FPH-200N. High-speed vertical-eye film wrapping finishes each coil in 15–25 seconds. Adjustable overlap (10%–90%), tension control, inverter-driven speed, and quick-reset changeovers deliver neat, protective wraps. Safety guardrails and smooth braking safeguard coils and operators while boosting throughput and cutting waste.

The Challenge: Manual Coil Wrapping Drawbacks

High Labor Costs: Multiple operators needed, driving up expenses.
Inconsistent Quality: Variable tension and overlap cause waste or deformation.
Slow Changeovers: Adjusting for different coil sizes disrupts flow.
Throughput Pressure: Slow cycles create end-of-line bottlenecks.
Material Waste: Excess film use inflates packaging costs.
Safety Risks: Abrupt starts/stops threaten operators and coil surfaces.
Line Integration: Need flexible modes and quick resets for seamless operation.

The Solution: FPH-200N Features & Benefits

Feature	Benefit & ROI
15–25 sec Vertical-Eye Wrapping	Boosts throughput and replaces up to four operators.
Adjustable Overlap (10%–90%)	Optimizes film use to protect coils and cut material costs.
Tension Control & Special Brake	Ensures uniform tightness and prevents wrap folding.
Inverter-Driven Speed	Matches cycle times to demand, avoiding line slowdowns.
Reset-to-Origin	Enables fast changeovers for varying coil sizes, reducing downtime.
Manual/Auto Modes	Gives operators control for specials and full automation for volume runs.
Safety Guardrails & Smooth Braking	Protects operators and coil surfaces for uninterrupted cycles.
Multi-Material Support	Accommodates stretch film or paper wraps to suit protection and budget.
Easy Load/Unload	Reduces ergonomic strain and speeds up packaging.
Custom Configurations	Adapts dimensions and controls to any facility layout.

Technical Specifications

Parameter	Specification
Model	FPH-200N
Coil ID	Φ250–Φ650 mm
Coil OD	Φ450–Φ800 mm
Width	120–280 mm
Weight	5–30 kg
Wrap Time	20–35 sec/package
Average Cycle	15–25 sec/coil
Ring Speed	≤100 RPM
Power	380 V, 60 Hz, 3-phase; 1.5 kW
Materials	Film: OD 100–140 mm, ID 50 mm, W 60–80 mm; optional paper wraps
Controls	Manual/auto; inverter speed; reset-to-origin
Safety	Guardrails; soft start/stop; special brake
Customization	Per client specs

Ideal Applications & Industries

Garden Hose Makers: Ensure neat, protective wraps for coiled hoses.
Plastic Pipe Producers: Safeguard PVC/HDPE coils in transit.
OEM Assemblers: Wrap tubing components before assembly.
3PL Packaging: Serve varied small/light coils with one system.
Logistics & Warehousing: Stabilize wrapped loads and reduce damage claims.
After-Sales & Maintenance: Simplify repackaging of replacement coils.
Equipment Integrators: Embed turnkey wrapping into end-of-line solutions.

Why Wuxi BuHui

Wuxi BuHui’s FPH-200N combines rapid 15–25 sec wraps, precise overlap and tension control, and quick resets to slash labor and waste. Safety features and smooth braking protect operators and coils. Multi-material support and custom configurations adapt to any line. Choose Wuxi BuHui for efficient, reliable hose & pipe coil wrapping that lowers costs and elevates performance.

Request a Quote

Provide your coil specs and production targets to Wuxi BuHui. We’ll tailor the FPH-200N for optimal speed, protection, and cost savings.

The FPH-200 Hose Coil Packing Machinery is a high-performance packaging solution tailored for hose coils. Equipped with advanced automation, it delivers precise, secure wrapping while reducing labor costs. Its customizable features cater to diverse industrial needs, ensuring efficiency and reliability. Durable and easy to operate, it optimizes productivity and packaging quality.
