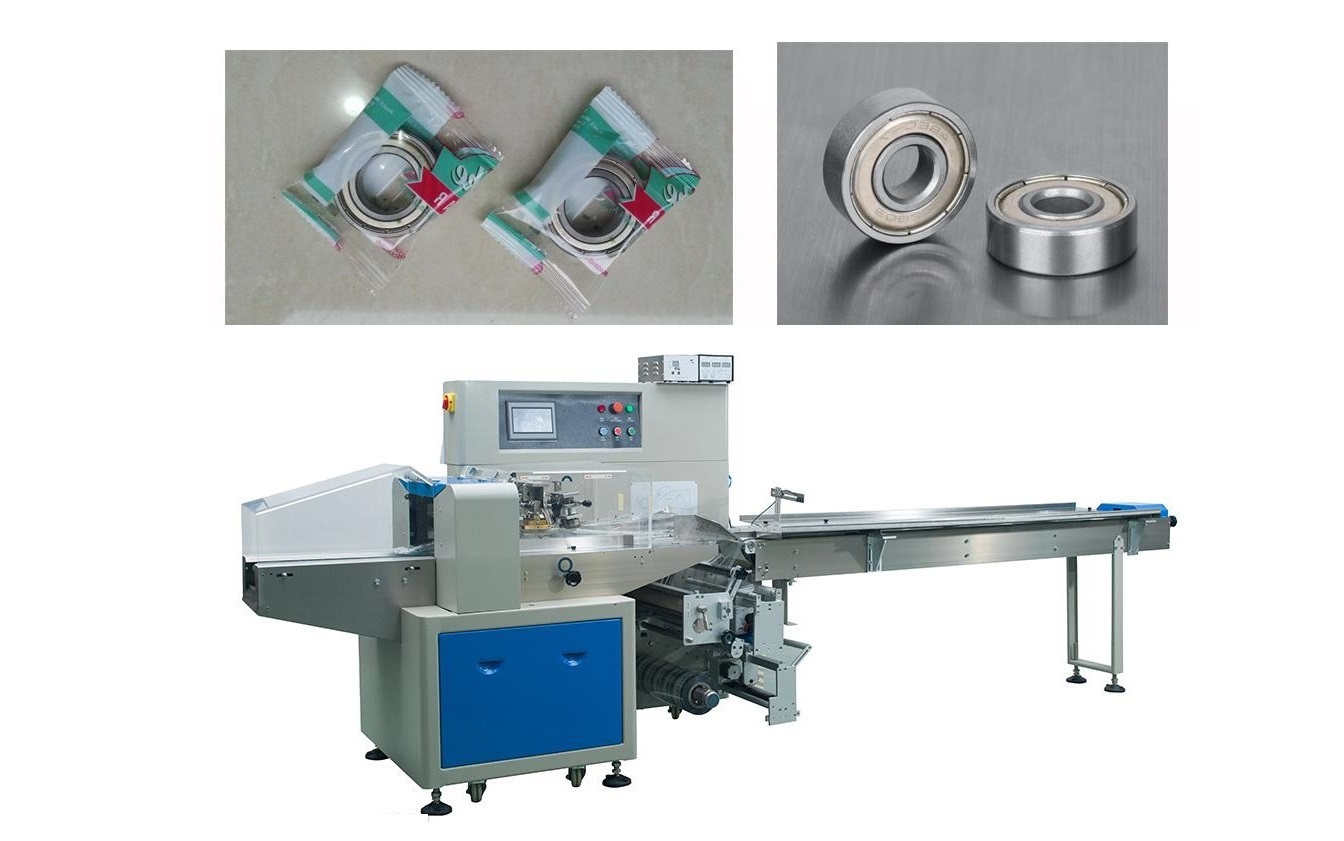

Bearing bag packing machine

Project Information

The horizontal bearing bag packing machine is a state-of-the-art solution for efficiently packaging small bearings into sealed bags. Designed with advanced technology and compliance with CE safety guidelines, it ensures high-speed, precise, and reliable operation.

Key Features

PLC-driven servo control for precise, automated workflows
High-performance servo motors delivering accurate, efficient operation
Dual-mode functionality—switch between manual and automatic as needed
Customizable cycle times to suit varied packaging requirements

Get Free Quote Now

Small bearing makers often hit packaging bottlenecks: slow manual methods, uneven seals, and rising labor bills. The Horizontal Small Bearing Bag Packing Machine solves these issues with PLC/servo-driven feeding, filling and sealing at up to 120 bags/min—ensuring fast, reliable output for bearings Ø20–130 mm and widths 10–80 mm using OPP, OPP/CPP or ALU-FILM.

The Challenge

Low Throughput: Manual or entry-level machines can’t keep up with growing demand.
Inconsistent Seals: Poor temperature/timing control causes leaks and waste.
Misfeeds & Jams: Inaccurate sensors lead to stops and rework.
Changeover Delays: Frequent film and size adjustments slow production.
Unplanned Downtime: Lack of diagnostics and robust controls increases maintenance.

The Solution: Features & Benefits

Feature	Benefit / ROI
PLC & Servo-Controlled Feeding & Sealing	Delivers consistent fills and strong seals—cuts rejects and manual checks.
High-Speed Operation (60–120 ppm)	Boosts output to match your targets—reduces labor cost per bag.
PID Temperature Control	Maintains optimal seal strength across film types—eliminates leaks.
Inverter-Driven Conveyor	Adapts speed for different bag lengths—shortens changeovers.
Precision Sensors & Stoppers	Ensures accurate bearing placement—prevents jams.
Auto Film Feeding & Tensioning	Automates roll changes—reduces waste and manual setup.
Dual Modes: Manual & Auto	Simplifies testing and training—minimizes production hiccups.
Adjustable Cycle Timing	Tailors dwell time for any bearing size—optimizes throughput.
Overcurrent Protection & Alarms	Safeguards motors—alerts on faults to cut downtime.
CE-Compliant, Rugged Build	Meets standards—ensures long-lasting, dependable performance.

Technical Specifications

Specification	Details
Model	Horizontal Small Bearing Bag Packing Machine
Bearing Ø Range	20–130 mm
Bearing Width	10–80 mm
Film Types	OPP, OPP/CPP, ALU-FILM
Bagging Speed	10–120 bags/min (typ. 60 ppm)
Air Supply	5–7 bar
Power	380 V 3-phase, 50/60 Hz
Control	PLC & HMI; servo actuation
Conveyor	Inverter-adjustable
Sealing	PID-controlled temperature
Sensors & Stoppers	Precision positioning
Modes	Manual jog, full automatic
Safety	EMO, alarms, overcurrent protection
Certification	CE compliant
Maintenance	Easy-access panels & modular parts

Ideal Applications

Bearing manufacturers seeking consistent, high-speed bagging
Automotive parts plants requiring JIT packaging
OEM workshops needing in-house spare parts bagging
Logistics centers for bulk bagging and inventory prep
Precision component shops with mixed production runs

Why Wuxi BuHui?

Wuxi BuHui’s solution combines advanced automation, robust construction and flexible operation to eliminate packaging bottlenecks, cut labor costs and guarantee seal integrity—empowering your team to exceed output targets with confidence.

The bearing bag packing machine provides an efficient solution for sealing bearings in protective bags. It ensures secure and contamination-free packaging, safeguarding bearings during storage and transportation. With its automated operation and precise performance, the machine enhances efficiency and consistency, making it ideal for various industrial needs.
