Copper coil packing machine

主页 > Products > Coil wrapping machine > Copper coil wrapping machine >
Copper coil packing machine
Copper coil packing
Copper coil
coil packing machine

Project Information

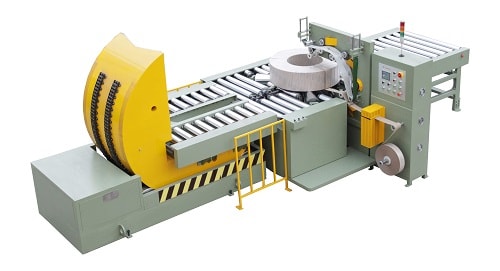

The FPC-400 is a fully automatic wrapping line designed for packaging copper coils, offering superior protection during shipping and handling. Known for its precision and reliability, this machine enhances packaging efficiency and quality, catering to diverse industrial needs.


Key Features:

  1. Multi-mode packing for copper wire, cable coils or horizontal steel coils

  2. PLC & HMI control with quick data entry and built-in fault alarms

  3. Conveyor-fed handling for smooth online/offline operation

  4. PU-coated wheels & rubber rollers protect coils and reduce wear


Get Free Quote Now





Streamline heavy copper coil packaging with the FPC-400. Automate horizontal wrapping for coils from 20 kg to 3000 kg, reduce labor, and protect your product.

The Challenge

  • Labor-intensive manual wrapping of heavy coils
  • Inconsistent tension or overlap risks damage
  • Bottlenecks from slow cycle times (manual or semi-auto)
  • Wide coil sizes (ID 400–800 mm, OD 700–1600 mm, up to 3000 kg)
  • Unplanned downtime without fault detection
  • Balancing protection vs. material cost

Features & Benefits

FeatureBenefit & ROI
Automated Horizontal Wrapping LineFull-circumference wrap in 25–60 s; cuts manual handling risks
PLC & HMI Control with Fault AlarmsQuick setup, real-time alerts to minimize downtime
Integrated ConveyorSmooth coil transfer; boosts workflow efficiency
Advanced Tension ControlUniform wrap tension; prevents deformation
PU & Rubber Wear-Resistant PartsLong life under heavy loads; lowers maintenance
Adjustable Overlap (10–80%) & Dual-MaterialOptimize protection and material use; combine films/belts
Wide Size CompatibilityHandles ID 400–800 mm, OD 700–1600 mm, 20–3000 kg
Cycle Speed 25–60 s/coil & 10–100 RPMMeets high-throughput demands; avoids bottlenecks
Auto Fault Alarm & HMI IndicatorsInstant error display; speeds troubleshooting
Motor Overload & Air IntegrationProtects drive; ensures pneumatic safety
Custom ConfigurationsAdapt conveyor, wrap params, and line integration

Technical Specifications

ParameterSpecification
ModelFPC-400
Coil Weight20–3000 kg
Coil ID400–800 mm
Coil OD700–1600 mm
Width10–400 mm
Wrap Speed25–60 s/coil
Rotating Speed10–100 RPM
Overlap10–80%
Roller Speed2–4 m/min
Power380 V, 50/60 Hz, 3φ
Air Supply5–8 kgf/cm²
Packing MaterialWoven belt or paper (ID 50/76 mm, OD 150–450 mm, W 90–120 mm)
ControlPLC & HMI with alarm
SafetyGuards, overload protection, auto-stop
ModeAutomatic
CustomizationConveyor length, wrap settings, material options

Ideal Applications

  • Copper coil producers & processors
  • Cable & electrical component manufacturers
  • Metal rolling mills handling non-ferrous coils
  • Contract packaging for heavy coils
  • Logistics & warehousing of large coils
  • OEMs & system integrators
  • Recycling & scrap metal facilities

Why Wuxi BuHui

Wuxi BuHui’s FPC-400 combines high-speed automation, precise PLC/HMI control, and wear-resistant design to maximize uptime and reduce costs. Its flexible wrap settings and wide size range adapt to any production line.

Request a Quote

Interested in optimizing your copper coil packaging? Contact Wuxi BuHui with your specs for a customized solution.

The copper coil packing machine offers streamlined and secure wrapping solutions for copper coils, ensuring protection from external damage and moisture. With automated functions, it enhances packing efficiency, minimizes human intervention, and improves packaging consistency, making it an essential tool for industries handling high volumes of copper coil materials.
