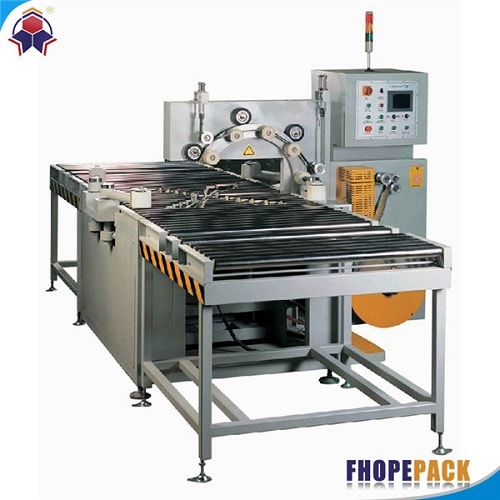

FPC-300 Copper coil wrapper

Project Information

The FPC-300 is a specialized packaging solution designed for copper coils with widths ranging from 50mm to 300mm. Its advanced features ensure reliable, high-quality wrapping that protects copper coils during shipping and handling, preventing damage and contamination.

Key Features:

Precise overlap for airtight, dust- and rust-free protection
Auto/manual ring-height adjustment fits any coil size
PLC/HMI with color-coded buttons for intuitive one-touch operation
Flashing red-light alarm and panel alerts for instant error notification

Get Free Quote Now

Automate copper coil wrapping with the FPC-300. Achieve tight, moisture- and dust-proof seals for coils 10–1000 kg and 50–300 mm wide, cutting labor and material waste.

The Challenge

Contaminants (moisture, dust, rust) damage exposed coils
Manual wrapping is slow, inconsistent, and wasteful
Coil sizes vary (ID 400–900 mm, OD 700–1200 mm, 10–1000 kg)
Overuse of film/belt inflates costs
Lack of fault alerts prolongs downtime
Operators need intuitive, safe controls

Features & Benefits

Feature	Benefit & ROI
Automated Horizontal Wrapping	35–50 s per coil; frees staff for higher-value tasks
Overlap Control (10–90%)	Eliminates air pockets; seals out contaminants
Tension Control	Uniform wraps prevent deformation and waste
Optional PLC & HMI	One-touch setup, real-time fault alerts
Adjustable Ring Height	Quick changeovers for varied coil diameters
Wear-Resistant Wheels & Rollers	Durable parts reduce maintenance downtime
Indicator Lights & Alarms	Instant error display speeds troubleshooting
Multiple Media Support	Use woven belt, paper, or stretch film per budget
Integrated Conveyor	Smooth coil feed; minimizes handling risks

Technical Specifications

Parameter	Specification
Model	FPC-300
Weight	10–1000 kg
Width	50–300 mm
ID Range	400–900 mm
OD Range	700–1200 mm
Wrap Speed	35–50 s/coil
Rotating Speed	5–100 RPM
Overlap	10–90%
Roller Speed	2–4 m/min
Power	380 V, 50/60 Hz, 3 φ
Air Supply	5–8 kgf/cm²
Materials	Woven belt, paper, stretch film (ID 50/76 mm, OD 150–450 mm, W 90–120 mm)
Control	Optional PLC & HMI with alarms
Safety	Guardrails, overload protection, auto-stop

Ideal Applications

Copper coil manufacturers & processors
Cable & electrical component producers
Metal rolling mills (non-ferrous coils)
Contract packaging providers
Logistics & warehousing of metal coils
OEMs & system integrators

Why Wuxi BuHui

Wuxi BuHui’s FPC-300 combines fast, precise wrapping with intuitive PLC/HMI controls and durable components. Reduce downtime, material waste, and labor costs while delivering airtight, protective packaging.

Request a Quote

Ready to upgrade your copper coil packaging? Contact Wuxi BuHui with your specs for a customized solution.

Efficient Wrapping Mechanism

Provides uniform and secure wrapping for coils of various sizes, ensuring optimal protection during storage and transportation.

Adjustable Tension Control

Allows precise adjustment of wrapping tension to accommodate different materials and prevent damage to coils.

High-Speed Operation

Processes multiple coils rapidly, increasing throughput and minimizing downtime in large-scale production environments.

The FPC-300 Copper Coil Wrapper is a specialized packaging machine designed for efficient and secure wrapping of copper coils. It offers consistent, high-quality protection, reducing material waste and safeguarding products during transport. With easy operation and customizable settings, the FPC-300 optimizes productivity in industrial packaging tasks.
