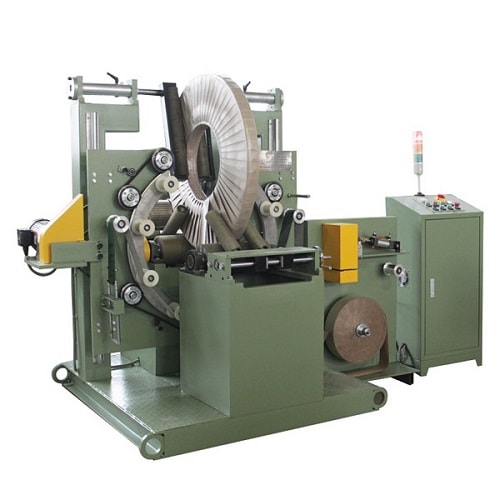

FPC-200 Copper coil wrapper
Project Information
The FPC-200 is a high-efficiency packaging machine tailored for copper coils with widths between 20mm and 200mm. Its advanced features ensure precise, cost-saving, and reliable packaging to protect copper coils during shipping and handling.
Key Features:
Supports paper, woven fabric, PE & stretch film (20–90% overlap)
Single- or dual-layer wrapping for extra protection
Auto/manual board adjustment fits any size
PLC control with optional English/Chinese HMI
Automate vertical wrapping of copper coils (5–500 kg, 10–200 mm wide) with the FPC-200. Ensure airtight, dust- and rust-proof packaging while cutting labor and material waste.
The Challenge
- Uneven wraps allow moisture, dust, rust ingress
- Manual adjustment for varied coil sizes causes downtime
- Labor-intensive wrapping wastes time and film
- Lack of fault alerts prolongs troubleshooting
- Need seamless integration and quick changeovers
Features & Benefits
| Feature | Benefit & ROI |
|---|---|
| Vertical wrapping design | Full coverage in tight footprint; uniform seals |
| Tension & overlap control (20–90%) | Eliminates air gaps; optimizes material use |
| Auto/manual height adjustment | Fast changeovers for OD 300–1200 mm |
| Optional PLC/HMI (EN/CN) | Intuitive setup, real-time fault alerts |
| Wear-resistant wheels & rollers | Durable parts reduce maintenance |
| Single or dual-layer wrapping | Extra protection when needed |
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FPC-200 |
| Weight | 5–500 kg |
| Width | 10–200 mm |
| ID Range | 300–800 mm |
| OD Range | 600–1200 mm |
| Overlap | 20–90% |
| Wrap Speed | 23–50 s/coil |
| Rotating Speed | 10–100 RPM |
| Power | 380 V, 50/60 Hz, 3φ |
| Air Supply | 5–8 kgf/cm² |
| Media | Paper, woven belt, or stretch film |
Ideal Applications
- Copper coil manufacturers & processors
- Cable & electrical component producers
- Metal rolling mills (non-ferrous coils)
- Contract packaging services
- Logistics & warehousing of metal coils
Why Wuxi BuHui
Wuxi BuHui’s FPC-200 delivers precise, high-speed vertical wrapping with intuitive PLC/HMI controls and robust components—maximizing uptime, minimizing waste, and ensuring consistent protection.
Request a Quote
Contact Wuxi BuHui with your coil specs to configure a custom FPC-200 solution.
The FPC-200 Copper Coil Wrapper provides robust and efficient wrapping solutions for copper coils, enhancing protection against environmental factors and handling damage. Engineered for precision, it offers customizable settings to meet various coil sizes and wrapping requirements, ensuring a secure, durable wrap that maintains coil integrity during storage and transit.
